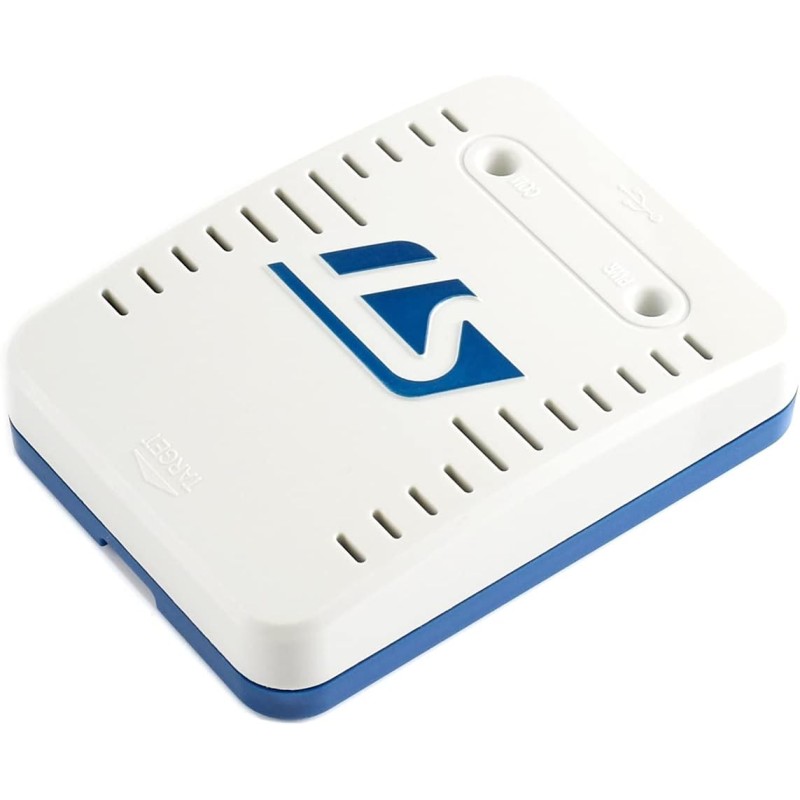

Waveshare STLINK-V3SET Modular in-Circuit Debugger and Programmer for STM32/STM8 Microcontrollers Stand-Alone Probe Bridge and V

Waveshare STLINK-V3SET Modular in-Circuit Debugger and Programmer for STM32/STM8 Microcontrollers Stand-Alone Probe Bridge and Virtual COM Port Interface

Stand-alone probe with modular extensions;self-powerouge through a micro-b usb connector usb 2.0 high-speed compatible interface;direct firmware update (dfu) support drag-and-drop flash programming;two color leds: communication, power

JTAG / serial wire debugging (SWD) specific features: 3 V to 3.6 V application voltage support and 5 V tolerant inputs Flat cables STDC14 to MIPI10 / STDC14 / MIPI20 (connectors with 1.27 mm pitch) Flat cable for 20-pin JTAG/SWD (2.54 mm pitch)

SWIM specific features (only available with adapter board MB1440): 1.65 V to 5.5 V application voltage support SWIM header (2.54 mm pitch) SWIM cables with dual 4-pin connectors / 4-pin connector to separated pins (2.54 mm pitch) SWIM low-speed and high-speed modes support

Virtual COM port (VCP) specific features: 3 V to 3.6 V application voltage support on the UART interface and 5 V tolerant inputs VCP frequency up to 15 MHz Available on STDC14 debug connector (not available on MIPI10)

Multi-path bridge USB to SPI/UART/I2C/CAN/GPIOs specific features: 3 V to 3.6 V application voltage support and 5 V tolerant inputs Signals available on adapter board only (MB1440)
