Waveshare Pi GSM/GPRS/GNSS Hat Expansion Board with Low-Power Consumption Based on SIM868 Compatible with Raspberry Pi 2B 3B Zer
42,99 €
HT

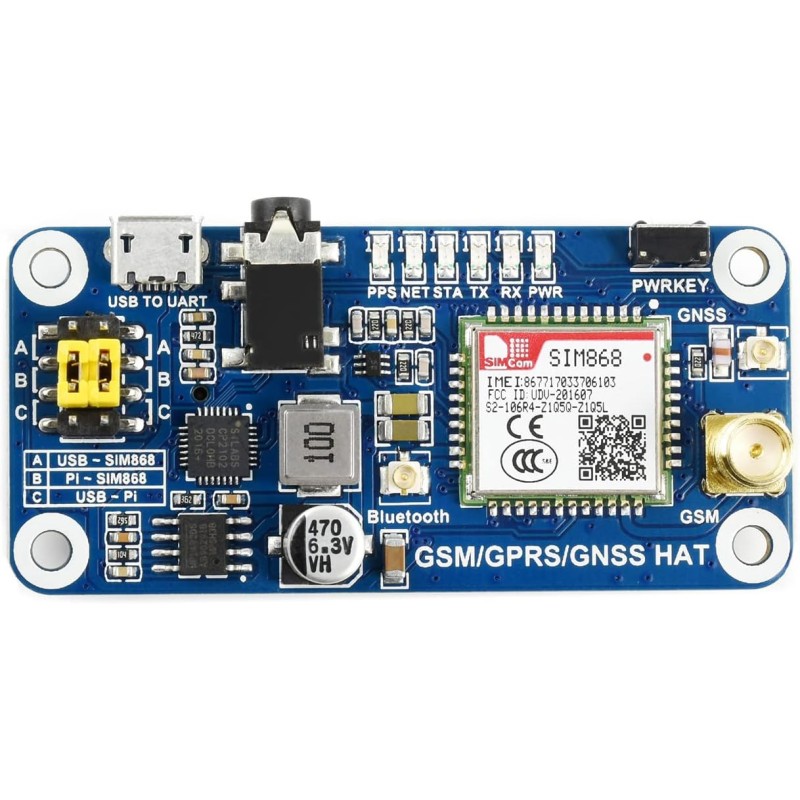

Waveshare Pi GSM/GPRS/GNSS Hat Expansion Board with Low-Power Consumption Based on SIM868 Compatible with Raspberry Pi 2B 3B Zero Zero W
Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano; Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT; Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
Supports SMS, phone call, GPRS, DTMF, HTTP, FTP, MMS, email, etc.Support GPS, COMPASS, Glonass, LBS base station positioning, omni-positioning; Supports data transferring
Onboard USB TO UART converter CP2102 for UART debugging; 6x LEDs for indicating the module working status; SIM card slot for 1.8V/3V SIM card
RTC with backup batt holder;Baudrate auto detection (1200bps ~115200bps); Control via AT commands (3GPP TS 27.007, 27.005, and SIMCOM enhanced AT Commands);
Supports SIM application toolkit: GSM 11.14 Release 99;
Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano; Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT; Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
Supports SMS, phone call, GPRS, DTMF, HTTP, FTP, MMS, email, etc.Support GPS, COMPASS, Glonass, LBS base station positioning, omni-positioning; Supports data transferring
Onboard USB TO UART converter CP2102 for UART debugging; 6x LEDs for indicating the module working status; SIM card slot for 1.8V/3V SIM card
RTC with backup batt holder;Baudrate auto detection (1200bps ~115200bps); Control via AT commands (3GPP TS 27.007, 27.005, and SIMCOM enhanced AT Commands);
Supports SIM application toolkit: GSM 11.14 Release 99;
B075M8WN5L
Fiche technique
- Type de connecteur
- Bluetooth
- Numéro du modèle de l'article
- GSM/GPRS/GNSS HAT
- Compatibilité du périphérique
- Raspberry Pi
- séries
- Raspberry Pi GSM/GPRS/GNSS HAT
- Taille
- GSM/GPRS/GNSS HAT
- Marque
- Waveshare
- Système d'exploitation
- Linux
- Marque du processeur
- VIA
- Type de connectivité
- gsm
- Interface du matériel informatique
- USB
- Dimensions de l'article L x L x H
- 10 x 3 x 9 centimètres
- Disponibilité des pièces détachées
- Information indisponible sur les pièces détachées
- Mises à jour logicielles garanties jusqu’à
- Information non disponible
- Nombre de coeurs
- 1
- Type de technologie sans fil
- 802.11a/g/n
