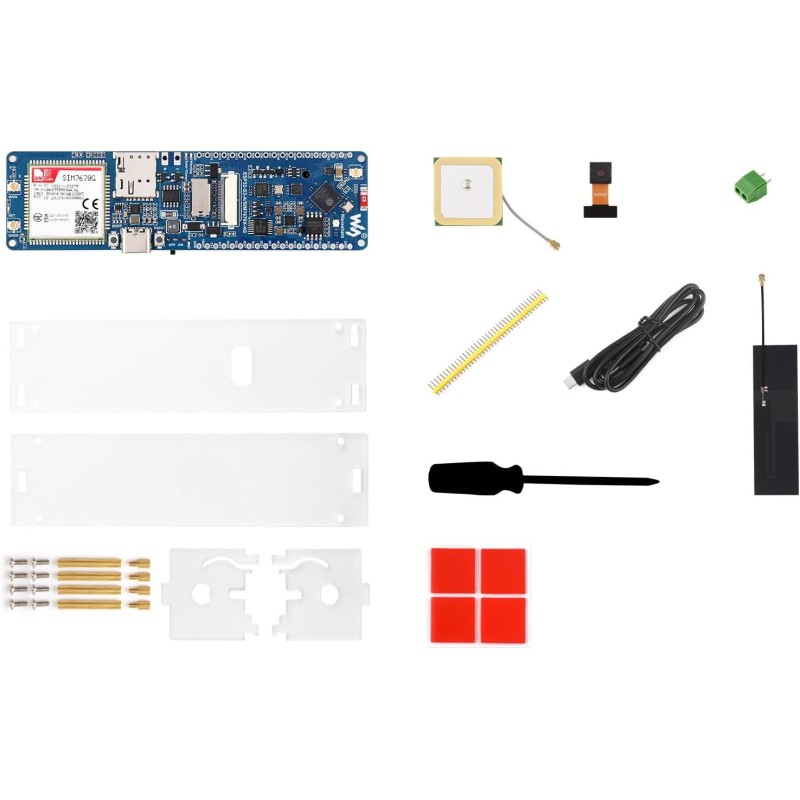

Waveshare ESP32-S3 SIM7670G 4G Development Board, LTE Cat-1 / WiFi/BT/GNSS Positioning Support, Global Coverage Multi Band, Suit

Waveshare ESP32-S3 SIM7670G 4G Development Board, LTE Cat-1 / WiFi/BT/GNSS Positioning Support, Global Coverage Multi Band, Suitable for 4G Portable WiFi, Onboard Camera/Antenna

Adopts ESP32-S3R2 chip with high-performance Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz

Built in 512KB SRAM, 384KB ROM, 2MB of PSRAM, and 16MB Flash memory. Integrated 2.4GHz Wi-Fi and BT LE dual-mode wireless communication, featuring superior RF performance

Equipped with the SIM7670G cellular module, supports 4G Cat-1 networking, GNSS positioning and other functions. Onboard USB switching IC and DIP switch for switching to use the USB interface of SIM7670G, suitable for connecting with PC for dial-up internet or debugging of SIM7670G module

Onboard lithium batt charging, solar charging, power management, batt capacity measurement, and related protection circuits, supports USB and solar charging with real-time batt capacity measurement. Onboard 18650 batt holder (18650 batt is NOT included), adapting VBAT pin header for connecting to external 3.7V lithium batt, with anti-reverse protection

Rich peripheral interfaces such as camera interface, tf card slot, usb port, 38pin header, etc., easy to expand and achieve various functions. onboard multiple dip switches for camera on/off, switching usb channels to avoid interface conflict, and setting power on/off for some circuits to rougeuce power consumption
